High Frequency 100khz Ultrasonic Coating Device

Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of high frequency 100khz ultrasonic coating device in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.

FS310 Ultrasonic spray coating device is basically used in industries such as fuel cells, thin-film photovoltaic cells, thin-film photo voltaic coatings, perovskite photo voltaic cells, photo voltaic cells, graphene coatings, silicon photovoltaic cells, glass coatings, and digital circuits. The nozzle can be used for a number solutions, and can even atomize sewage, chemical liquids, and oil viscous liquids.

Ultrasonic spray coating technology is to combine the ultrasonic atomizing nozzle with low-pressure air (gas) to produce soft, exceedingly targeted small spray droplets. Guided air (gas) is generally brought into the diffusion chamber of the air cover surrounding the nozzle beneath 0.10Mpa, and a uniformly dispensed air and gas flow is generated round the nozzle rod. The spray generated by using the ultrasonic wave at the tip of the atomizing head is without delay entrained in the low-pressure airflow.

The adjustable focusing mechanism on the air hood lets in full manipulate of the spray width. The envelope of spray is very narrow, in the structure of an hourglass. The width of the structure is managed with the aid of adjusting the distance between the nozzle and the backside plate.

1. The spray pattern features flexible shaping capabilities, perfectly suited for high-precision coating operations.

2. It delivers uniform micrometer-level thin coatings on workpieces of all shapes with consistent thickness.

3. Ultrasonic atomization spraying effectively cuts downtime in high-precision and critical production procedures, improving overall operational efficiency.

4. Designed with an ultra-low flow rate, the ultrasonic atomization system supports both intermittent and continuous working modes to meet diverse production needs.

5. It achieves precise and adjustable spray output, ensuring stable, consistent and highly reliable coating quality.

6. The equipment boasts low power consumption and high atomization efficiency, with excellent compatibility for a wide range of atomizable liquids.

7. It eliminates material waste and air pollution induced by overspray and backspray, significantly reducing production costs.

8. The system operates under zero pressure with no operational noise. It has no moving parts, resulting in zero mechanical wear and nozzle blockage.

9. The atomizing nozzle adopts premium titanium alloy material, featuring exceptional structural strength and outstanding corrosion resistance for long-term service life.

Be used in a wide range of industries.



Carbon paper spraying

Flux spraying

High temperature glass spraying

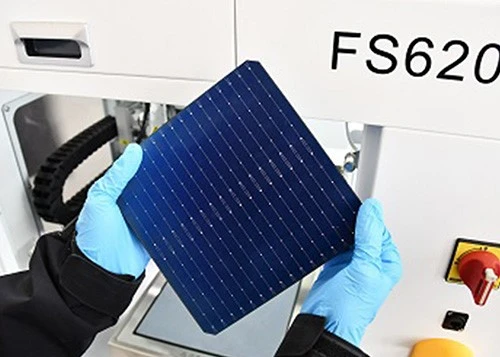

Photovoltaic cell

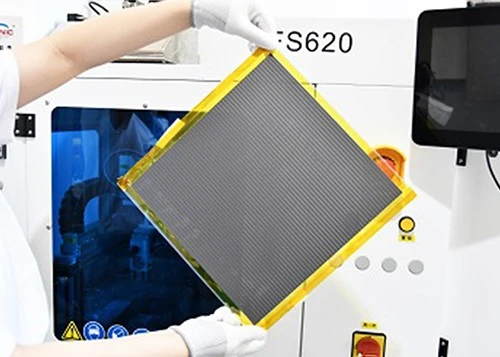

Solar panel spraying

Syringe spraying
