Ultrasonic Large-area Production Line Precision Coating

Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of ultrasonic large-area production line precision coating in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.

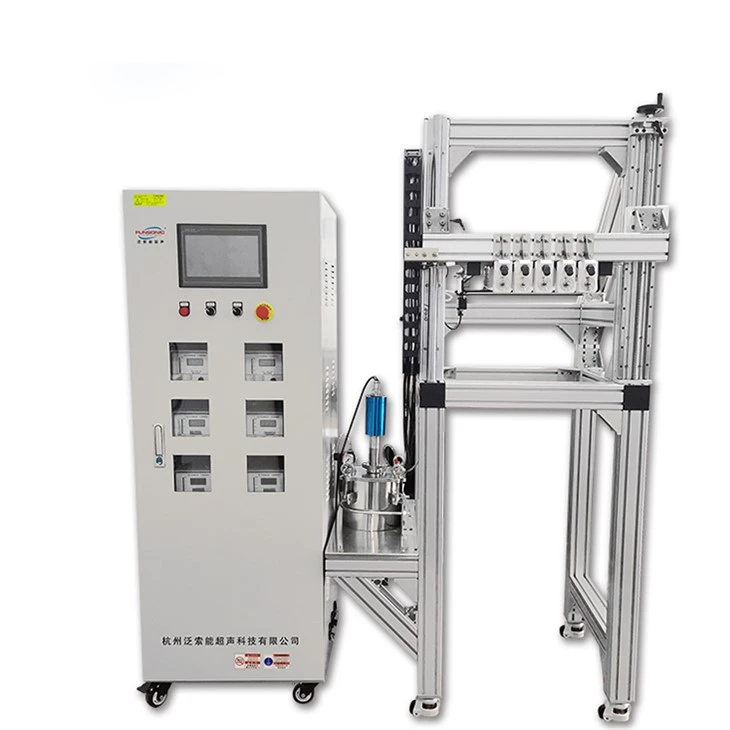

The ultrasonic large-area in-line precision coating machine is a 24/7 continuous ultrasonic spraying device designed for integrated production line deployment. Featuring a fixed series multi-nozzle configuration and a moving substrate conveyor belt, this equipment is specially developed to enable enterprises to implement continuous in-line spraying operations without disrupting existing production workflows.​

Boasting an integrated, compact structure and comprehensive functional modules, the complete machine is equipped with a Y-axis precision motion module, a built-in power supply and control cabinet, and a full set of intelligent optimization systems. These core configurations jointly deliver uniform, high-efficiency thin-film coating results. The machine supports compatibility with a full range of FUNSONIC ultrasonic nozzles for large-area spraying applications. It can also be integrated with high-precision pressure tanks and digital carrier gas systems, with optional ultrasonic dispersion and liquid supply systems available to meet diverse processing requirements.







1. The spray pattern is easy to establish and well‑suited for photovoltaic cell coating applications.

2. It delivers uniform‑grade micron‑thick coatings on workpieces of complex geometries.

3. Self‑cleaning, non‑clogging ultrasonic nozzles reduce downtime for critical production operations.

4. Featuring ultra‑low flow capacity, the system supports both intermittent and continuous operation.

5. Highly controllable spray output delivers superior and consistent spraying performance.

6. Low power consumption, high atomization efficiency, and broad compatibility with different atomizable liquids.

7. Excellent transfer efficiency minimizes material waste and over‑spray‑induced airborne contamination, substantially cutting operational costs.

8. Pressure‑free operation generates no noise and causes no wear to moving components.

9. The spray tip is constructed from titanium alloy, offering high strength and outstanding corrosion resistance.

10. Minimal maintenance requirements further boost overall productivity.

11. Equipped with high‑precision pressure‑reducing valves and liquid control valves, the complete unit enables coordinated gas‑liquid regulation across a wide speed range.

12. Laser‑assisted alignment enables rapid positioning of the spray point. (Complete machine)

13. Capable of operating at high temperatures up to several hundred degrees Celsius, it is applied in solar cell coating, featuring simple workflow and high processing efficiency.
