20Khz New Scraping Technology By Ultrasonic Indium Coating Equipment
Item No: FSY-2010-OC
Frequency: 20khz
Power: 1000w
Temperature Range: 150-400℃
Working Amplitude: 3-20μm
Materilas of horn: Titanium Alloy
Vibrating Head Size:80*20mm (Curved to fit the external diameter of the tube)
Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of 20khz new scraping technology by ultrasonic indium coating equipment in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.
Description:
Ultrasonic outer circle indium coating uses ultrasonic technology to deposit indium on the outer surface of cylindrical or tubular substrates. This indium plating process is commonly used on cylindrical parts like pipes and fittings. The indium metal/alloy coating delivers conductivity, corrosion resistance and other functions.
Types of Ultrasonic Indium Coating :
Types of indium coating Machine
Ultrasonic Planar Indium Coating

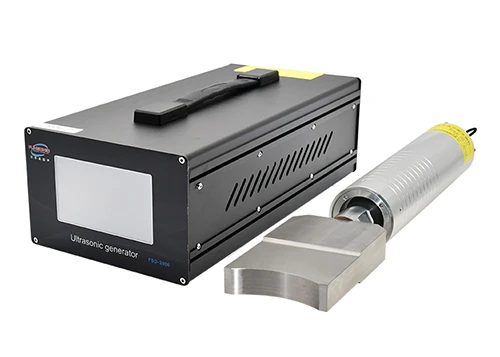

Ultrasonic Cylindrical Indium Coating

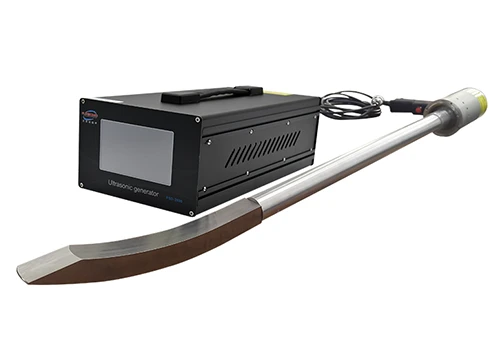

Ultrasonic Inner Circle Indium Coating
Ultrasonic Superconducting Wire Indium Coating
Automatically Ultrasonic Inner Circle Indium Coating
Automatically Ultrasonic Outer Circle Indium Coating
Advantages :
1. Uniformity and Fine Surface Finish
The ultrasonic indium coating system delivers highly uniform, fine coatings to guarantee stable coating quality and consistency, ideal for high-precision applications.
2. Precise Control
Operators can accurately adjust ultrasonic frequency, spray rate and material feed rate to tailor coating thickness and properties for different application requirements.
3. Environmental Compatibility
This process generally avoids hazardous solvents and chemical additives. It complies with green manufacturing standards and lowers environmental impact.
4. Reduced Material Waste
Thanks to efficient ultrasonic atomization and high material utilization, the process cuts down production costs.
5. High-Temperature Adaptability
The equipment can run under elevated temperatures and adapts to various process conditions.
6. Multi-Substrate Capability
It supports coating on a wide range of substrates including metals, ceramics and composites, covering broad application scenarios.

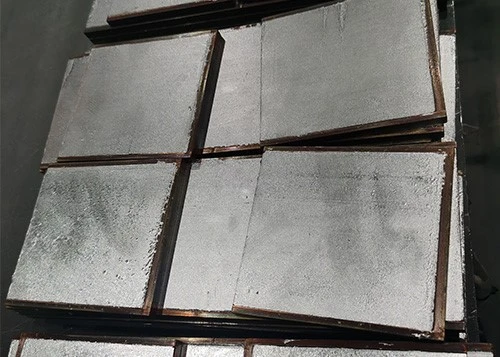

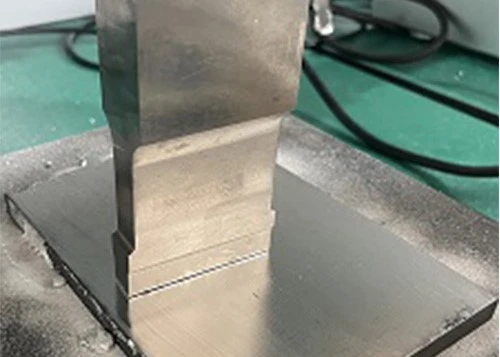

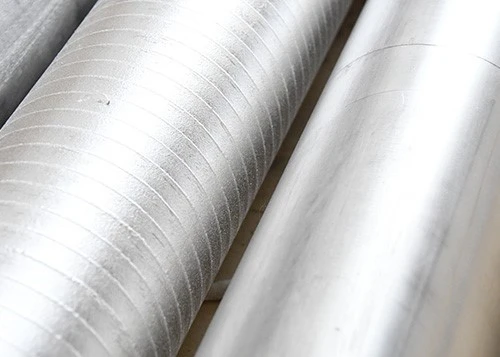

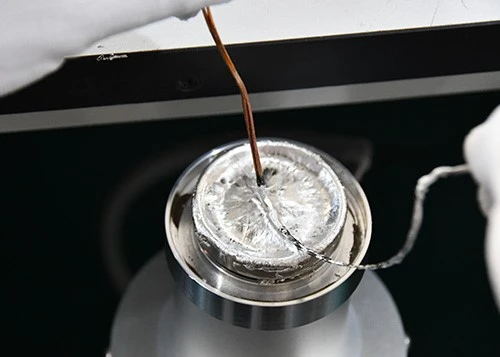

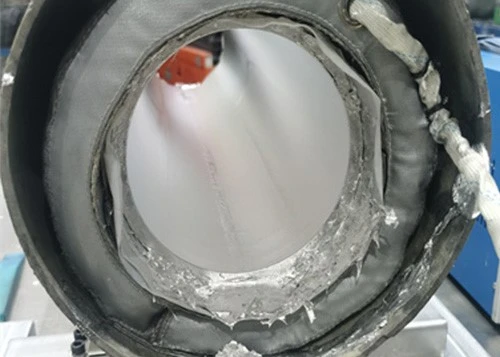

Application:
Be used in a wide range of industries.
Certification

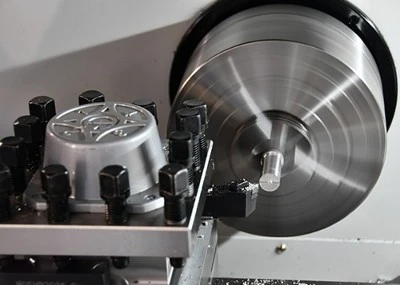

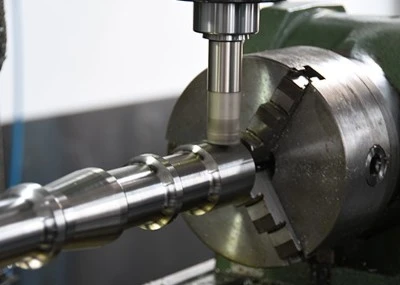

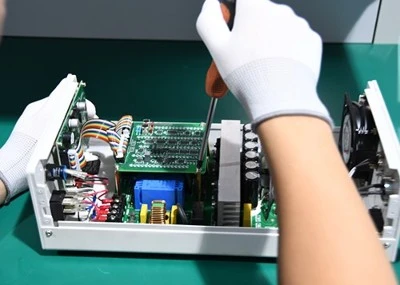

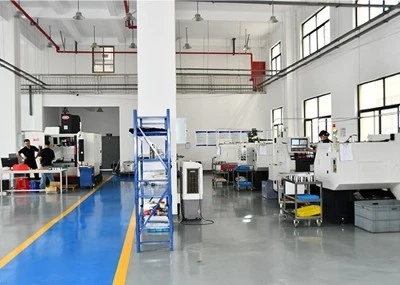

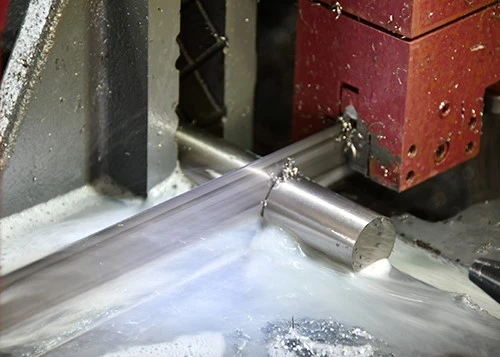

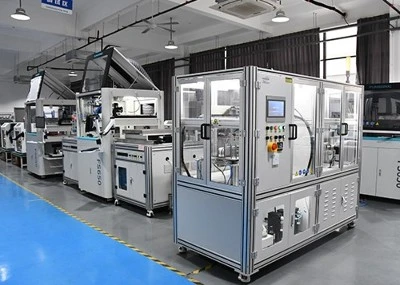

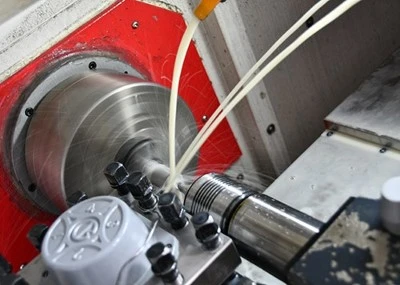

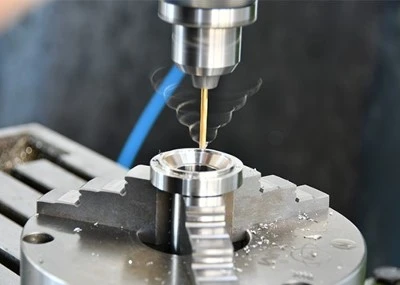

Our Production Line

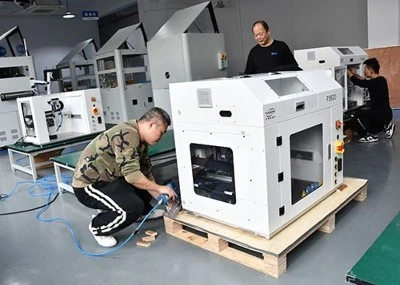

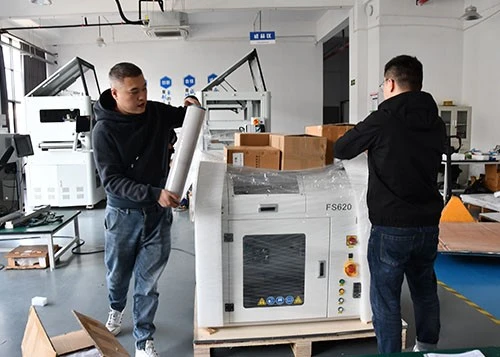

Packing&Delivery
Our Partner
Hot Tags: 20khz new scraping technology by ultrasonic indium coating equipment, China 20khz new scraping technology by ultrasonic indium coating equipment manufacturers, suppliers, factory, Environmentally Friendly Welding Solution 28K Ultrasonic Indium Coating Welding Technology, 20Khz 1000W Ultrasonic Flat Indium Coating Device, 20Khz New Scraping Technology By Ultrasonic Indium Coating Equipment, Arc Target Ultrasonic Indium Plating Coating Outer Tube, 20Khz Bending Ultrasonic Indium Coating Machine, Manufacturing Superconducting Magnets By Ultrasonic Indium Coating
|
Model |
FSY-2010-OC |
|
Name |
20Khz Ultrasonic External Indium Coating |
|
Frequency |
20Khz |
|
Power |
300-1500w |
|
Temperature Range |
150-400℃ |
|
Working Amplitude |
3-20μm |
|
Input Voltage |
220V±10%,50/60Hz, 6A |
|
Vibrating Head Size |
80*20mm (Curved to fit the external diameter of the tube) |
|
Control Mode |
Support I/O or 485 communication control, can be integrated with automation operations |
Technical Parameters :
|
Product Type |
Flat Indium Coating |
Inner Indium Coating |
External Indium Coating |
|
|
Power |
100-1000W |
500-2500W |
300-1500W |
|
|
Frequency |
20,28,30KHz |
20KHz |
20KHZ |
|
|
Temperature Range |
150-400℃ |
|||
|
Working Amplitude |
3-20μm |
3-15μm |
3-20μm |
|
|
Input Voltage |
220V± 10%,50/60Hz,4A |
220V± 10%,50/60Hz,8A |
220V± 10%,50/60Hz,6A |
|
|
Material of Horn |
Titanium Alloy |
|||
|
Working Mode |
Intermittent/ continuous working |
|||
|
Control Mode |
Manual button or external control |
|||
|
Components |
Ultrasonic generator, transducer, specialized amplitude lever, indium coated head, shell, etc |
|||
|
Ultrasonic Generator |
Size |
180*120*360mm |
||
|
Weight |
5kg |
|||
|
characteristic |
Fully digital frequency tracking system, temperature automatic adjustment system, capable of working 24 hours a day |
|||
|
Size of Horn |
Φ16T-hat Circular Horn,,50*10mm Square Horn |
50*30mm(Radian fitting tube inner diameter) |
80*20mm(Radian fitting tube external diameter) |
|
|
Treatment Materials |
ITO glass, aluminum, molybdenum, copper, indium, etc |
|||
|
Application |
Flat, inner hole, outer circle, etc |
|||
