Application Of Ultrasonic Functional Thin Film Coating in The Automotive Industry
Item No: FS650X
Frequency: 20-200KHz (Normally use 60\100K)
Power: 1-15w
Dry Film Thickness: 20nm-100μm
Temperature Range: -10-60℃
Spray uniformity: ≥95%
Solution viscosity: ≤30cps
Atomized particles (median value): 10-45μm（Distilled water),
determined by nozzle frequency
Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of application of ultrasonic functional thin film coating in the automotive industry in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.
Description:
The adoption of ultrasonic functional thin‑film coating in the automotive industry has driven advances in coating processes, improved vehicles in overall performance, exterior finish and service durability, and satisfied consumers' growing demands for automotive quality and eco‑friendly performance.
Ultrasonic functional thin‑film coating is seeing expanding applications across the automotive sector. For protective coatings, it delivers outstanding scratch resistance to shield automotive paintwork from abrasion by gravel, twigs and other external debris. It also offers strong tolerance to corrosive agents including acid rain and salt spray, thus prolonging vehicle service life. When deployed for functional coatings, the ultrasonic deposition method creates self‑cleaning layers that reduce dirt and limescale adhesion to keep exterior body panels tidy. For interior surfaces, antibacterial coatings fabricated via ultrasonic coating curb bacterial proliferation and upgrade in‑cabin air quality.
Specific Automotive Industry Coating Applications :
1. Hard protective coating
2. Applied to interior console molded plastic components and optical lenses
3. Oil-repellent and hydrophobic coating for in-vehicle display glass surfaces
4. Waterproof and flame-retardant coating for automotive fabrics and textile materials
5. Weather-resistant protective coating for exterior vehicle parts
6. Polytetrafluoroethylene (PTFE) and silicone coating treatments for rubber gaskets and other related components
Application:
Certification
Our Laboratory
Our Production Line
Packing&Delivery
Our Team
FUNSONIC BIG FAMILY
Company Exhibition
Hot Tags: application of ultrasonic functional thin film coating in the automotive industry, China application of ultrasonic functional thin film coating in the automotive industry manufacturers, suppliers, factory, 110Khz Special Ultrasonic Precision Coating for Perovskite Batteries, Ultrasonic Atomization Spray Coating Equipment, 110V Ultrasonic Perovskite Cell Coating For Large sized Perovskite Photovoltaic Device Spraying, Intelligent Ultrasonic Precision Coation Machine, Ultrasonic Precision Coating Of Blood Anticoagulant Vollection Tube, Production Line For Syringe Ultrasonic Spray Coating
|
Product Type |

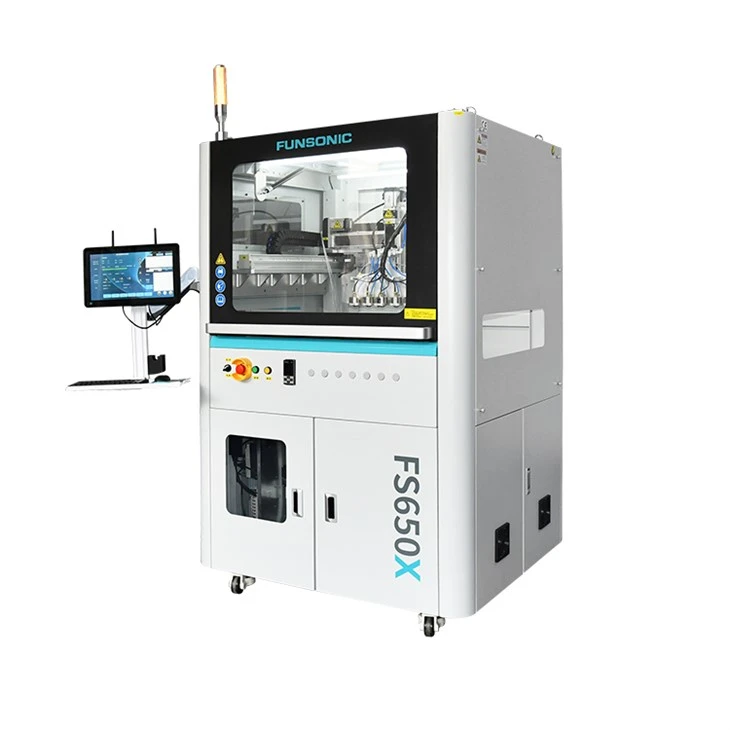

Floor-stand Ultrasonic Spray Coating Machine FS650X |
|
Spray Nozzle Operating Frequency |
20-200KHz (Normally use 60\100K) |
|
Nozzle Power |
1-15W |
|
Continuous Spraying Volume Max |
Determine based on the type and quantity of nozzles configured (Max 5 Nozzles) |
|
Effective Spraying Width |
Determine based on the type and quantity of nozzles configured |
|
Spray Uniformity |
≥95% |
|
Solution Conversion Rate |
≥95% |
|
Dry Film Thickness |
20nm-100μm |
|
Solution Viscosity |
≤30cps |
|
Temperature Range |
1-60℃ |
|
Atomized Particles (Median Value) |
10-45μm (distilled water), determined by the frequency of the nozzle |
|
Diversion Pressure Max |
≤0.15MPA |
|
Input Voltage |
220V±10%/50-60Hz |
|
Exercise Mode |
A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module+Horizontal automatic conveying mechanism |
|
Control Mode |
PLC control, operation control system developed based on Windows system, supporting remote operation, upgrading, etc |
|
Control Content |
The touch screen integrates ultrasonic nozzle, liquid supply, heating, adsorption, ultrasonic dispersion and other controls, and also has system monitoring, alarm and other functions |
|
Liquid Supply Method |
Precision injection pump |
|
Ultrasonic Dispersion System (Optional) |
20ml or 50ml, 40K, biological grade sampler |
