High Performance Textile Flame Retardant Ultrasonic Coating Technology
Item No: FS2000-8
Frequency: 20-200khz for Optional
Power: 1-15w
Continuous spraying amount(max): 0.01-50ml
Effective spraying width: 2-100mm
Spray uniformity: ≥95%
Solution viscosity: ≤30cps
Atomized particles (median value): 10-45μm（Distilled water),
determined by nozzle frequency
Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of high performance textile flame retardant ultrasonic coating technology in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.
Description:
High-performance textile flame-retardant ultrasonic coating technology is primarily deployed in the textile industry for the functional coating treatment of high-performance textile materials. It is applicable to a wide range of fabric types, including cotton, linen, synthetic fibers and other common textile materials. Leveraging ultrasonic spraying techniques, this technology forms functional coatings with waterproof, breathable, antibacterial and flame-retardant properties on fabric surfaces.
In contrast to conventional dipping and pad-dyeing processes, this ultrasonic coating technology enables precise control over coating deposition to form uniform nanofilm layers on textiles. It substantially cuts down the consumption of water, chemical reagents and energy, delivering outstanding eco-friendly performance.
Application :
1. Firefighting suits: protective apparel worn by professional firefighters to boost personal safety during operations.
2. Industrial workwear: designed for staff working in high‑risk scenarios to provide enhanced protective performance.
3. Household textiles: including curtains and sofa upholstery fabrics, applied to improve residential fire safety.
Application:
Certification
Our Laboratory
Our Production Line
Packing&Delivery
Our Team
FUNSONIC BIG FAMILY
Company Exhibition
Hot Tags: high performance textile flame retardant ultrasonic coating technology, China high performance textile flame retardant ultrasonic coating technology manufacturers, suppliers, factory, Ultrasonic Drug Polymer Coating Stent Equipment, Full Ultrasound Coating Solutions High Precision Spry On Line System, EMI Shielding Ultrasonic Spraying Coating Technology, Applying Ultrasonic Technology Spray Coating Substrates, Customized Production Type 8 in 1 Combination Ultrasonic Spray Coater, Stent Implantation Drug Coated Ultrasonic Spray System
|
Product Type |
Intelligent Ultrasonic Precision Coating Machine Type FS2000-8 |
|
Spray Nozzle Operating Frequency |
20-200KHz (Normally use 60\100\110\120K) |
|
Nozzle Power |
1-15W |
|
Continuous Spraying Volume Max |
0.01-50ml/min |
|
Effective Spraying Width |
2-100mm |
|
Spray Uniformity |
≥95% |
|
Solution Conversion Rate |
≥95% |
|
Dry Film Thickness |
20nm-100μm |
|
Solution Viscosity |
≤30cps |
|
Room Temperature Range |
1-60℃ |
|
Atomized Particles (Median Value) |
10-45μm (distilled water), determined by the frequency of the nozzle |
|
Diversion Pressure Max |
≤0.15MPA |
|
Input Voltage |
220V±10%/50-60Hz |
|
Exercise Mode |
XYZ three-axis, independently programmable |
|
Control Mode |

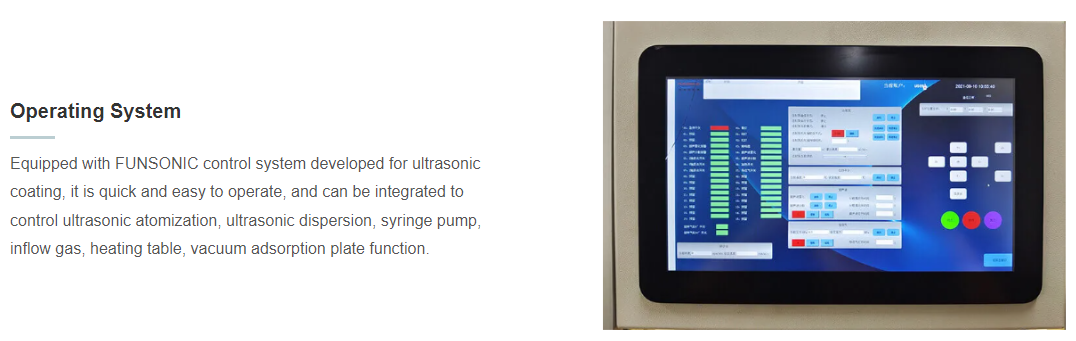

FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
|
Control Content |
Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
