Touch Screen Head Up Display Ultrasonic Coating Sprayer
video

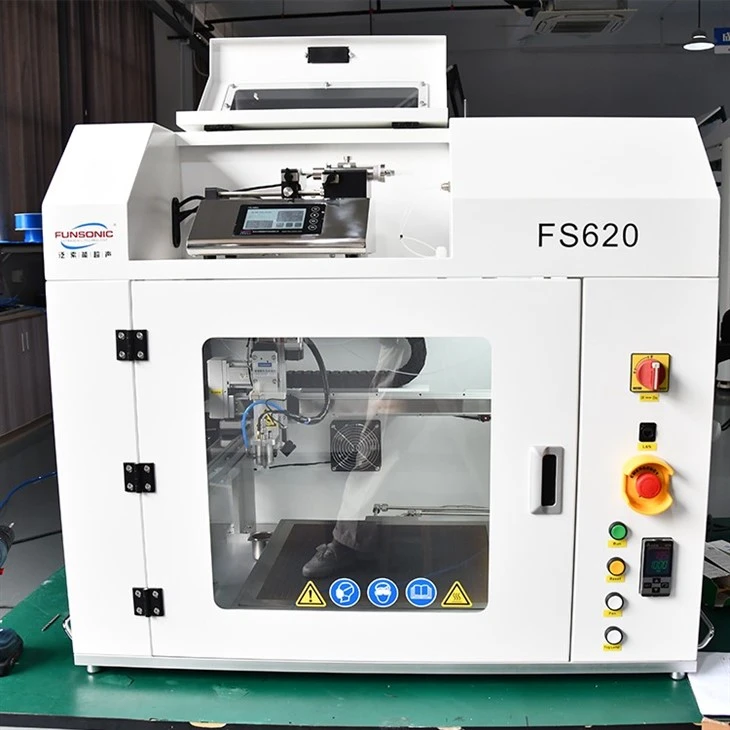

Touch Screen Head Up Display Ultrasonic Coating Sprayer

Touch Screen Head Up Display Ultrasonic Coating Sprayer

Item No: FS620
Frequency: 60khz
Power: 1-15w
Continuous spraying amount(max): 0.01-50ml
Effective spraying width: 2-100mm
Spray uniformity: ≥95%
Solution viscosity: ≤30cps
Atomized particles (median value): 10-45μm(Distilled water),
determined by nozzle frequency

Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of touch screen head up display ultrasonic coating sprayer in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.





Description:



The touchscreen HUD ultrasonic coating sprayer is professional equipment designed for ultrasonic coating treatment on display surfaces, intended to upgrade product overall performance and service life.


Adopting ultrasonic technology, this device atomizes coating materials and sprays them uniformly onto touch panel surfaces to form a protective film. The film effectively improves the touchscreen's wear resistance, mitigating scratches and physical damage.


Displays processed via ultrasonic coating can reduce glare from sunlight and other ambient light sources, optimizing visual presentation and improving content legibility. It fully caters to modern market demands for high-performance and long-endurance display products.



Application :



1. Polyurethane coating features outstanding wear resistance and flexibility, along with reliable adhesion and chemical resistance. It is widely adopted for anti-scratch and surface protection coating scenarios across various industries.



2. Acrylic coating delivers high light transmittance, authentic gloss finish, and superior resistance to UV rays and harsh weather conditions. It is ideal for surface applications that demand high transparency and excellent aesthetic effects.



3. Silicone coating boasts stable performance under both high and low temperatures, as well as superior waterproof and oil-repellent capabilities. It is well-suited for high-standard working environments, including automotive parts and industrial equipment.



4. Fluorine coating possesses ultra-low surface energy, endowing it with exceptional antifouling and anti-corrosion performance. It is widely applied to high-end touch screens to deliver long-lasting and stable surface protection.



5. Water-based coatings are eco-friendly with low VOC emissions, meeting stringent environmental protection requirements. They are increasingly applied to consumer electronic products that comply with modern global environmental standards.



6. Nano coating features an ultra-thin film thickness, paired with excellent self-cleaning and waterproof functions. It serves as an enhanced protective layer for high-tech electronic and precision products.



7. Ceramic coating offers ultra-high hardness and superior wear resistance, providing outstanding scratch-proof protection. It is perfectly suited for products that require extreme durability and long service life.



focusmist Type



FocusMist Nozzle



FS620 FUNSONIC


Application:



Ultrasonic float glass spraying
Ultrasonic Precision Spray Coated 2


Ultrasonic Spray Nozzle
Ultrasonic Spray Coating



Certification



FUNSONIC Certification 1





Our Laboratory



product-1200-800
Lab



Our Production Line






Packing&Delivery



1 1001
2 1001
Packing 4
1 2001
2 2001
3 2001



Our Partner

WIN-WIN COOPERATION

FUNSONIC Friends 1
FUNSONIC Friends 2
FUNSONIC Friends 3
FUNSONIC Friends 4



Company Exhibition



Shanghai Exhibition 2
Shanghai Exhibition 3
Beijing Exhibition 1
Foshan Exhibition 1
Foshan Exhibition 4
Foshan Exhibition 5



Hot Tags: touch screen head up display ultrasonic coating sprayer, China touch screen head up display ultrasonic coating sprayer manufacturers, suppliers, factory, Ultrasonic Scratch Resistant And Oil Repellent Coating Anti Fingerprint Atomization, Intelligent Ultrasonic Dispersion Manual Liquid Supply Pump, Basic Ultrasonic Precision Sprayinng Machine, 120Khz Ultrasonic Drug Balloon Catheter Coating System, Catalent Spraying Draying Ultrasonic Fuel Cell Coating Solution, New Precision Ultrasonic Coating Technology Graphene Spray Coater

Product Type

Intelligent Ultrasonic Precision Coating Machine desktop Type FS620

Spray Nozzle Operating Frequency

20-200Khz

Nozzle Power

1-15W

Continuous Spraying Volume Max

0.5-10ml/min

Effective Spraying Width

2-20mm

Spray Uniformity

≥95%

Solution Conversion Rate

≥95%

Dry Film Thickness

20nm-100μm

Solution Viscosity

≤30cps

Temperature Range

1-60℃

Atomized Particles (Median Value)

15-40μm (distilled water), determined by the frequency of the nozzle

Diversion Pressure Max

≤0.05MPA

Input Voltage

220V±10%/50-60Hz

Exercise Mode

XYZ three-axis, independently programmable

Control Mode

FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen

Control Content

Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems

Liquid Supply Method

Precision injection pump

Ultrasonic Dispersion System (Optional)

20ml or 50ml, 40K, biological grade sampler

Rated Power of Ultrasonic Dispersion System

100W
