100Khz Drug Stent Ultrasonic Atomizing Spraying Nozzle

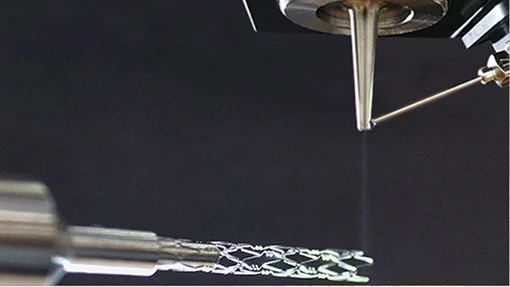

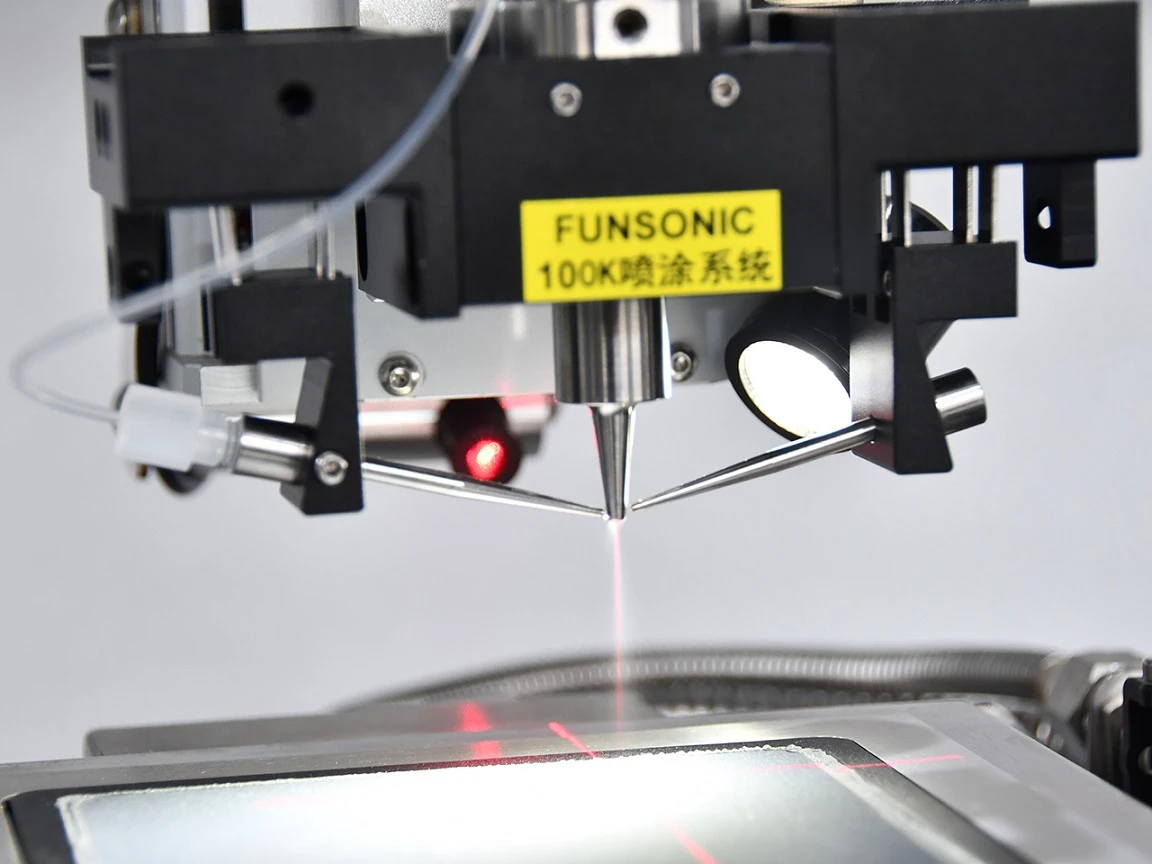

The ultrasonic fine line atomization nozzle is made of titanium alloy and has good acoustic characteristics. The liquid supply mode of the nozzle is different from other nozzle modes. The liquid is introduced to the atomization surface through the externally installed conduit, and the gas enters from the nozzle hole. The air flow attracts the spray to form an extremely narrow spray beam. The significant feature of this ultrasonic fine line atomization is that the liquid is supplied externally, and before the liquid atomization, the liquid is completely isolated from the nozzle vibration. This means that in different spray cycles, spray has higher stability and reproducibility.

Get a Quote

1. The ultrasonic spray nozzle is not blocked;

2. Highly controllable and repeatable spray;

3. The coating is evenly distributed, durable, and will not peel or peel off;

4. Be able to conduct spray at the flow rate of μ L/h;

5. Low speed spray can be attached to the stent or balloon without rebound or overspray;

6. The droplets are as small as ten micrometers (when using organic solvents), and the distribution of droplets is uniform;

7. It belongs to mature technology and can be used for coating implantable stents and other precision medical equipment.

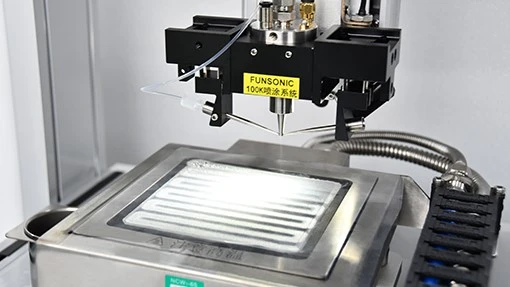

Many customers ultimately choose our FUNSONIC ultrasonic equipment because they value the stability of the entire set of equipment. In order to adapt to different application scenarios, FUNSONIC has developed multiple ultrasonic atomizing nozzles, which are equipped with self-developed Windows software to effectively and accurately control the uniformity of the coating. The atomization effect is good and the nozzle is not easily blocked. Although the purchase price is not the lowest, the equipment is durable and rarely malfunctions, so there is no need to spend money on repairing machines or replacing parts frequently. The cost is more cost-effective.
