Ultrasonic Atomization Technology Spray Nozzle 100Khz

Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of ultrasonic atomization technology spray nozzle 100khz in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.

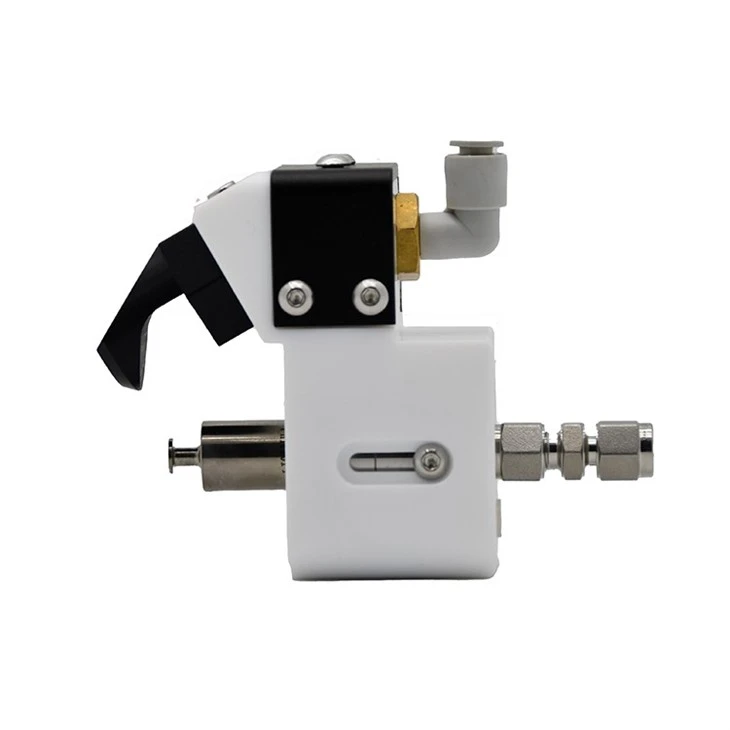

The 100 kHz ultrasonic atomization spray nozzle is a core component of atomization‑generation equipment. It produces high‑energy, high‑velocity atomized media and exerts a decisive influence on the atomization efficiency and operational stability of the overall atomization process. Fabricated from high‑strength titanium alloy alongside proprietary special metals, this nozzle delivers outstanding chemical corrosion resistance and excellent acoustic performance.

1. Suspension Spraying
Particles and powders within suspensions remain well‑dispersed in the liquid. Under ultrasonic excitation, consistent spray droplets are generated. For this reason, ultrasonic spraying performs well for specialty coatings including nanoparticle suspensions, ceramic coatings and metallic coatings.


2. High‑viscosity Liquid Spraying
Conventional spraying methods struggle with high‑viscosity fluids, commonly suffering from poor coating flow behaviour and nozzle blockage. Leveraging vigorous liquid motion and shear forces, ultrasonic spraying can process high‑viscosity fluids and facilitate smooth spray delivery.


3. High‑solids‑content Liquid Spraying
Certain specialty coatings are loaded with large fractions of solid particles or fillers. Ultrasonic spraying evenly distributes these solids throughout the liquid to produce uniform deposited coatings. It is well‑suited for applications demanding high solids content, such as ceramic coatings and particle‑reinforced coatings.


4. Temperature‑sensitive Coating Spraying
Some coating materials are thermally sensitive. Conventional spraying processes, with their associated high‑ / low‑temperature conditions, may degrade final coating properties. Ultrasonic spraying operates at low spray pressure, minimising thermal fluctuations during deposition and preserving coating integrity and functional performance.


5. Thin‑film Coating
Ultrasonic spraying enables accurate thickness control, even for ultra‑thin deposited layers. This capability brings distinct benefits for thin‑film applications like optical coatings and electronic component coatings.

20-200KHz Ultrasonic Spray Nozzle



Scattering Nozzle

FocusMist Nozzle

ConeMist Nozzle

WideMist Nozzle

MicroMist Nozzle

Penetrator Nozzle





WIN-WIN Cooperation



Company Exhibition
