60Khz WideMist Ultrasonic Atomizing Nozzle

Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of 60khz widemist ultrasonic atomizing nozzle in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.

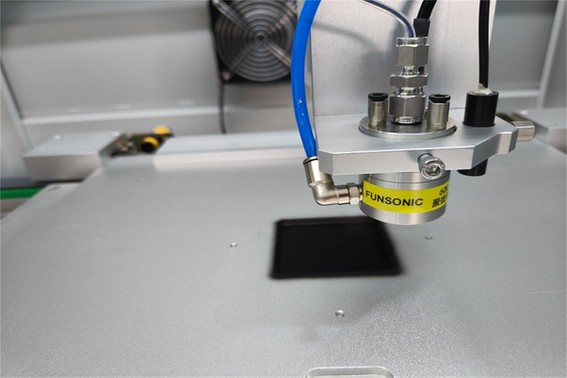

The ultrasonic wide‑swath atomizing nozzle features a custom‑designed air flow passage, and is engineered for large‑area spray coverage.

Piezoelectric transducers integrated into ultrasonic nozzles transform high‑frequency acoustic waves into mechanical energy to produce high‑frequency longitudinal vibration. This vertical reciprocating movement creates standing waves within the liquid film at the nozzle tip. Liquid waves propagate upward from the nozzle orifice and break away to form uniformly‑sized, low‑kinetic‑energy droplets, ranging from nanometers to micrometers. The wide‑swath nozzle discharges this liquid mist in a fan pattern to achieve broad‑area spraying.

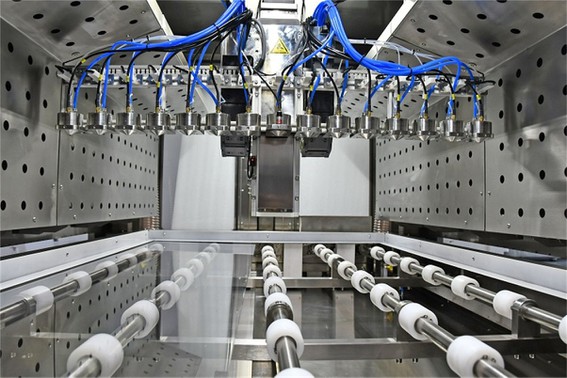

1. Multiple‑nozzle stacking configurations enable extended spray width


2. Precise coating thickness control: 20 nm – 100 μm


3. Coating uniformity: ≥ 95%


4. Produces fine, consistent droplets


5. Supports 24‑hour continuous operation


6. Non‑clogging, corrosion‑resistant ultrasonic nozzle

FS150

FS310

FS620

FS630

FS650

FS670

FS680

FS1005

FS1006

FS2000-8
