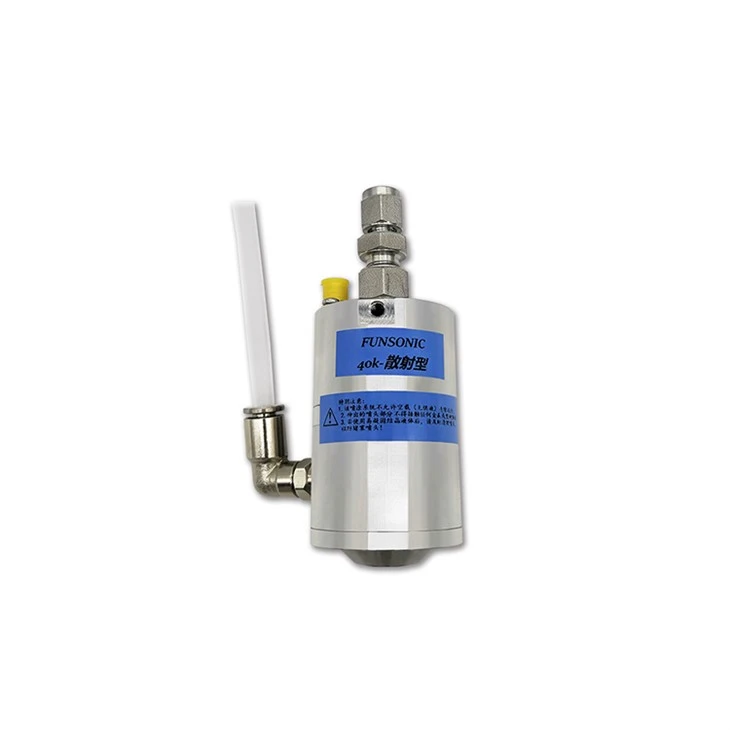

40Khz Ultrasonic Wide Scattering Photoresist Coating on Semiconductor Chips Ultrasonic Nozzles

40Khz Ultrasonic Wide Scattering Photoresist Coating on Semiconductor Chips Ultrasonic Nozzles

Name: China 40Khz Ultrasonic Wide Scattering Photoresist Coating on Semiconductor Chips Ultrasonic Nozzles Manufacturers Suppliers Factory - Shengtu
Brand: FUNSONIC
SKU: 235488526

Item No: FSW-4002-L
Frequency: 40khz
Power: 1-15w
Continuous spraying amount(max): 0.5-20ml/min
Effective spraying width: 40-80mm
Spray uniformity: ≥95%
Solution viscosity: ≤30cps
Diversion pressure: <0.05Mpa

Send Inquiry

Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of 40khz ultrasonic wide scattering photoresist coating on semiconductor chips ultrasonic nozzles in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.

Description:

40Khz Ultrasonic Wide Scattering Photoresist Coating on Semiconductor Chips Ultrasonic Nozzles is the photoresist coating on semiconductor chips, where the photoresist is sprayed onto the semiconductor chips. Due to the rotational scattering of mist emitted by the scattering type ultrasonic nozzle, a uniform photoresist film can be formed not only on the wafer plane, but also on the sidewalls and corners of the wafer microstructure. In addition, scattering ultrasonic nozzles can also be used for thin film solar cell coatings, calcium titanate solar cell coatings, AR transmission and reflection film coatings, insulation film coatings, superhydrophobic coating coatings, PCB flux coatings, and other applications.
In order to meet the requirements of large-area scattering spraying of ultrasonic waves on semiconductor chips, FUNSONIC has specially designed the scattering nozzle to achieve a wide spraying area, allowing the resist to be evenly coated on the chip and ensuring the accuracy of pattern transfer.

Parameters:

Principle :

1. Liquid spray formation: the transducer is linked to the liquid spray system, typically a nozzle or liquid reservoir. When the transducer vibrates, it transfers vibration electricity to the liquid in the spraying system. This mechanical vibration acts on the liquid, producing severe liquid movement and shear forces.

2. Liquid shear and atomization: The violent motion and shear pressure of the liquid purpose the formation of small droplets. These droplets are atomized in the spraying machine and shape spray.

3. Spraying process: the generated spray can be directionally sprayed onto the goal surface via fabulous nozzles and spraying parameters. The dimension and distribution of spray particles can be managed by using adjusting the frequency, amplitude of ultrasonic vibration and spraying parameters.

Ultrasonic Spray Coated Machine 2
