PEM Fuel Cell Flat Material Ultrasonic Conical Spray Nozzle

Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of pem fuel cell flat material ultrasonic conical spray nozzle in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.

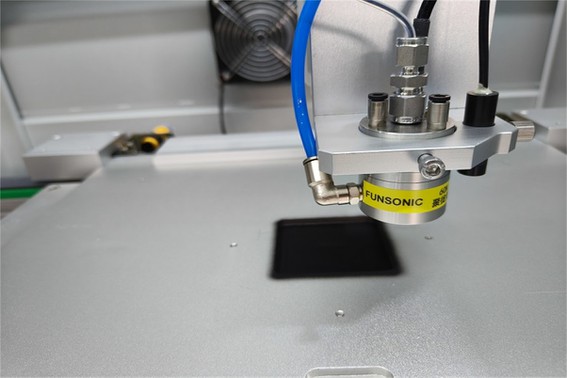

The ultrasonic conical spray nozzle for flat‑material PEM fuel cells is fitted with an air shroud. It generates broad vortex‑driven atomization, making it well‑suited for coating flat substrates including PEM fuel cells and solar cells. A reciprocating vortex‑style nozzle is recommended for this application, paired with a basic XY positioning stage.

This ultrasonic conical spray nozzle delivers a medium‑coverage spray footprint. Its spray width exceeds that of focused ultrasonic nozzles, yet is narrower than the coverage produced by wide‑format ultrasonic nozzles. The vortex‑type ultrasonic nozzle relies on low‑velocity swirling gas flow to achieve a uniform, broad spray pattern. It forms a conical spray coverage ranging from 2‑4 inches (50‑100 mm) in diameter; the exact dimension varies with stand‑off distance to the substrate. Vortex airflow speed can be adjusted to match specific process requirements.

20-200KHz Ultrasonic Nozzle



Scattering Nozzle

FocusMist Nozzle

ConeMist Nozzle

MicroMist Nozzle

WideMist Nozzle

Penetrator Nozzle

1. Ink Formulation

Perovskite catalyst precursor materials; solvent categories and mixing ratios; types and concentrations of functional additives, including stabilizers and co-solvents.

2. Spraying Process Parameters

Nozzle-to-substrate working distance; nozzle moving speed; scanning path mode; ultrasonic output power and operating frequency.

3. Substrate Preparation

Substrate material type; surface pretreatment procedures (including cleaning and surface modification treatment); substrate heating temperature.

4. Post-Treatment Process

Heat treatment temperature and holding time; annealing atmosphere conditions (such as nitrogen environment and vacuum environment).
