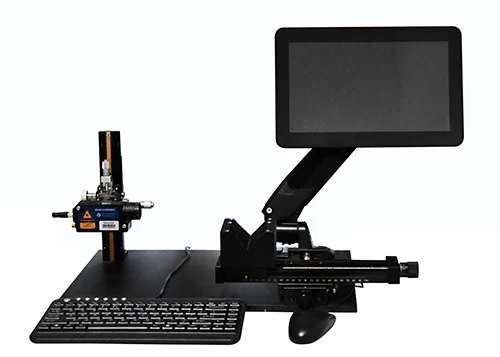

High Temperature Resistant Resin Ultrasonic Spraying Coating
Item No: FS620
Frequency: 60khz （20-200khz for optional）
Power: 1-15w
Continuous spraying amount(max): 0.01-50ml
Effective spraying width: 2-100mm
Spray uniformity: ≥95%
Solution viscosity: ≤30cps
Atomized particles (median value): 10-45μm（Distilled water),
determined by nozzle frequency
Hangzhou Shengtu Technology Co., Ltd. is one of the leading manufacturers and suppliers of high temperature resistant resin ultrasonic spraying coating in China. Welcome to buy high quality customized products at low price from our factory. Contact us for more details.
Description:
Ultrasonic spraying with high‑temperature‑resistant resin represents an advanced coating technology, widely applied in operating scenarios demanding outstanding heat and corrosion resistance. Conventional high‑temperature‑resistant resins feature excellent thermal stability and chemical inertness, retaining stable physical and chemical properties under high‑temperature conditions. These materials have found broad applications across aerospace, automotive manufacturing, electronics and industrial equipment sectors.
Application :
1. Electronic components：Shield printed circuit boards and other sensitive components against high‑temperature erosion and chemical corrosion.
2. Automotive industry：Applied as protective coatings for high‑temperature parts including engine assemblies and exhaust systems.
3. Aerospace sector：Safeguard core structural components from degradation induced by extreme heat and harsh service environments.

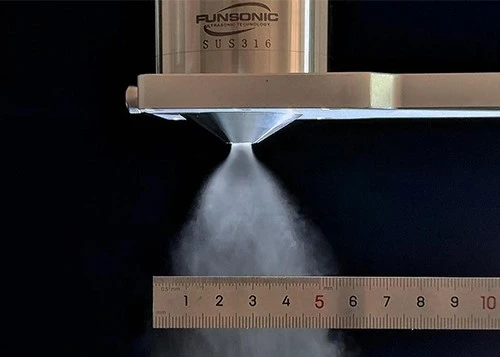

Nozzle Spray Effect
20-200Khz Ultrasonic Spray Nozzle
Scattering Nozzle

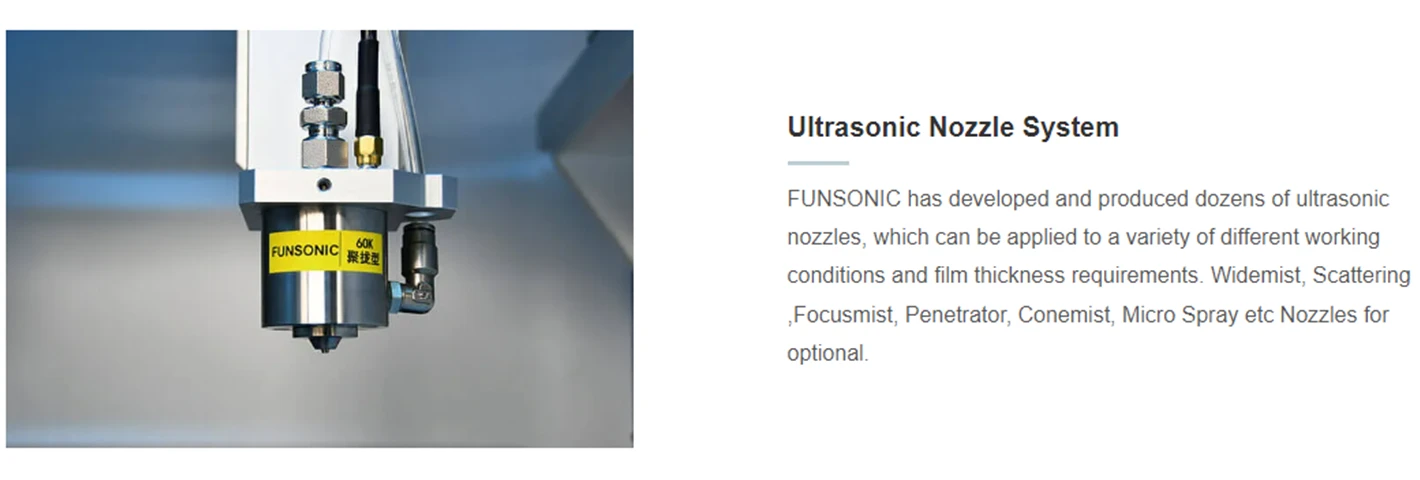

FocusMist Nozzle
WideMist Nozzle
MicroMist Nozzle
Penetrator Nozzle
ConeMist Nozzle
Application:
Certification

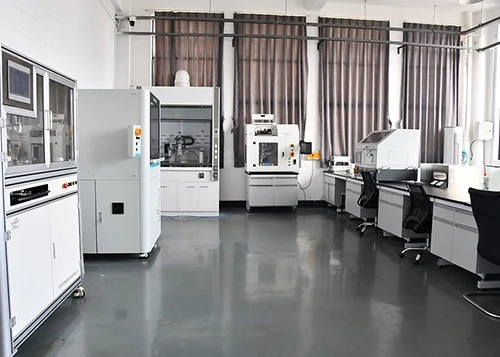

Our Laboratory

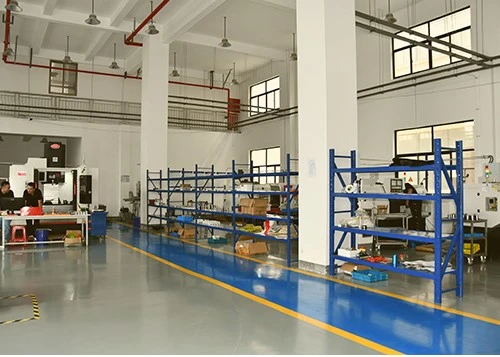

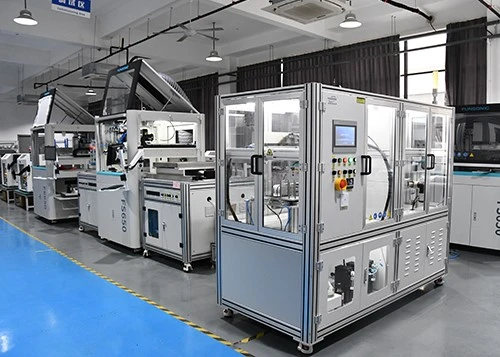

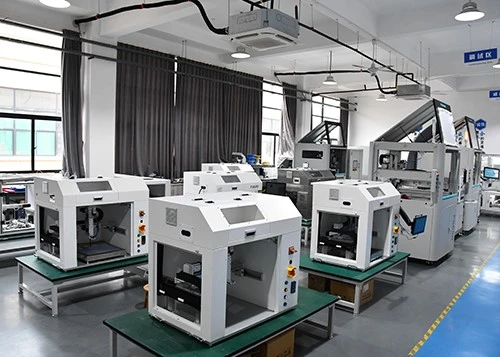

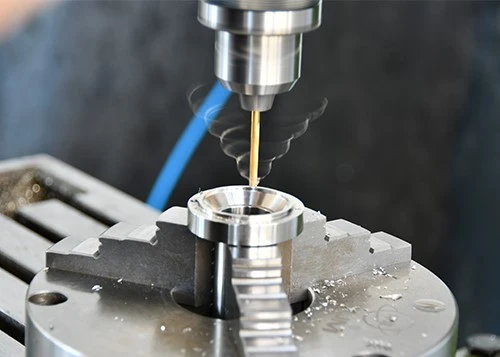

Our Production Line

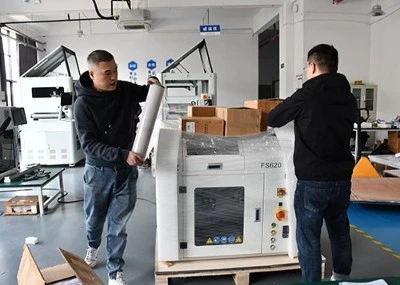

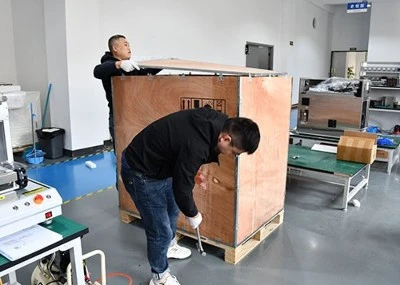

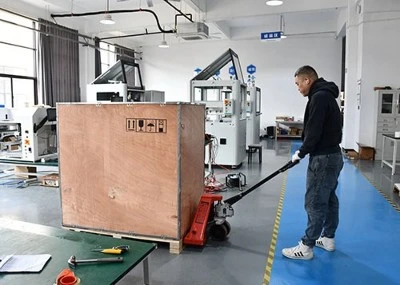

Packing&Delivery
Our Team
Company Exhibition
Hot Tags: high temperature resistant resin ultrasonic spraying coating, China high temperature resistant resin ultrasonic spraying coating manufacturers, suppliers, factory, Ultrsonic Dispersion Constant Flow Syringe Pump, Scientific Research Laboratory Qualitative Testing Ultrasonic Coating Machine, Stent Implantation Drug Coated Ultrasonic Spray System, Film Precision Production Ultrasonic Spray Coated Machine, Medical Testing Tube Ultrasonic Coated System, Customized Production Type 8 in 1 Combination Ultrasonic Spray Coater
|
Product Type |
Intelligent Ultrasonic Precision Coating Machine desktop Type FS620 |
|
Spray Nozzle Operating Frequency |
20-200Khz |
|
Nozzle Power |
1-15W |
|
Continuous Spraying Volume Max |
0.5-10ml/min |
|
Effective Spraying Width |
2-20mm |
|
Spray Uniformity |
≥95% |
|
Solution Conversion Rate |
≥95% |
|
Dry Film Thickness |
20nm-100μm |
|
Solution Viscosity |
≤30cps |
|
Temperature Range |
1-60℃ |
|
Atomized Particles (Median Value) |
15-40μm (distilled water), determined by the frequency of the nozzle |
|
Diversion Pressure Max |
≤0.05MPA |
|
Input Voltage |
220V±10%/50-60Hz |
|
Exercise Mode |
XYZ three-axis, independently programmable |
|
Control Mode |
FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
|
Control Content |
Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
|
Liquid Supply Method |
Precision injection pump |
|
Ultrasonic Dispersion System (Optional) |
20ml or 50ml, 40K, biological grade sampler |
|
Rated Power of Ultrasonic Dispersion System |
100W |
